Introduction to Managing Electrical Loads for Commercial Buildings
Managing electrical loads for commercial buildings is the practice of measuring, balancing, and controlling how much power your facility draws at any given time. Get it wrong and you risk tripped breakers, failed inspections, and costly downtime. This guide from Elecstroman Electric walks you through a five-step process that keeps your building safe and your power steady.
Step 1: Conduct a Commercial Electrical Load Assessment
A commercial electrical load assessment is a documented measurement of how much power each circuit and panel in your building actually draws. It gives you a baseline before you change anything.
Log these readings for every major load:
HVAC rooftop units and chillers
Kitchen equipment and refrigeration
Lighting circuits and exterior signage
Elevators, pumps, and motors

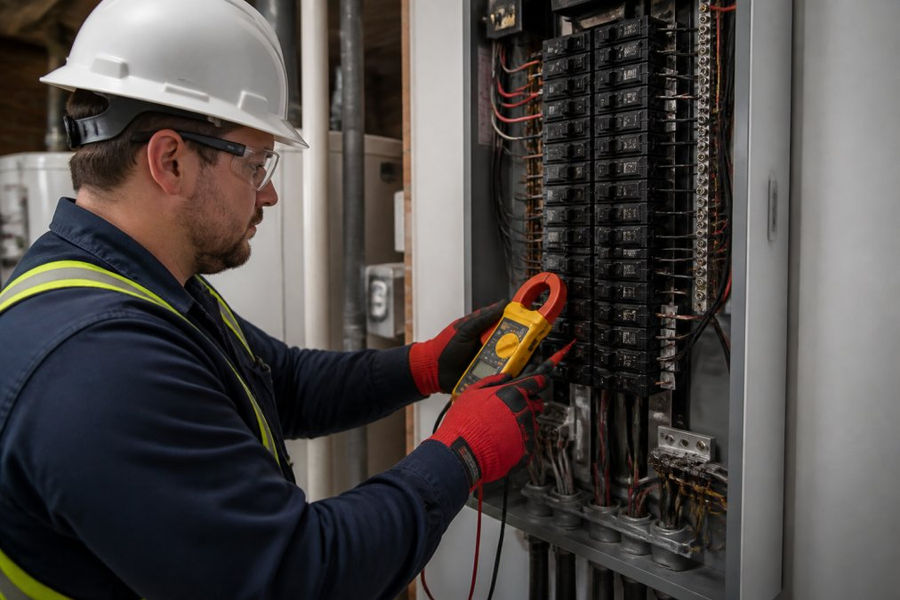

Using a Multimeter and Clamp Meter for Load Readings
A clamp meter measures current without breaking the circuit. You clamp it around a conductor and read the amps. A multimeter measures voltage, continuity, and resistance.
Watch Out Reading amps on only one phase is a common mistake. On a three-phase panel, an unbalanced load can overload one leg while the others look fine. Always read all phases.
Step 2: Meet NEC Commercial Load Calculation Requirements
NEC commercial load calculation requirements come from Article 220 of the National Electrical Code. This article tells you how to size feeders, services, and panelboards based on the loads you expect.
Here is the basic process:
List all connected loads by type
Apply the demand factor for each category
Add the results to get your calculated load
Compare that figure to your existing service capacity
Demand Factors and Load Diversity Explained
A demand factor is the percentage of a load type you must count toward your total. A load diversity assumption recognizes that not every load runs at once.
Pro Tip Keep a written load calculation on file for every panel you modify. Inspectors ask for it, and future upgrades go faster when the math is already done.
Step 3: Implement Electrical Load Shedding Strategies
Electrical load shedding strategies reduce demand by turning off or dimming non-critical loads when total draw approaches a set limit. The goal is to avoid tripping the main breaker during peak periods.
Common loads to shed first:
Non-essential lighting and signage
Backup HVAC zones
Water heaters and process equipment
EV chargers, which can pause and resume easily
Automatic vs Manual Load Shedding
Automatic shedding uses a controller or building management system to act in seconds. Manual shedding relies on staff to flip breakers or shut equipment down.
Method | Response Time | Best For | Main Drawback |
Automatic | Seconds | Facilities with peak demand charges | Higher upfront cost |
Manual | Minutes | Small sites with trained staff | Human error and delay |
Step 4: Deploy Commercial Building Energy Management Systems
Commercial building energy management systems (BEMS) tie metering, shedding, and monitoring into one platform. They show real-time demand and can automate responses. But in most modern facilities the BEMS is not a standalone box, it is the top layer of a control network that includes smart lighting, networked thermostats, and Power over Ethernet (PoE) devices. That is where load problems now hide, and it is where most generic guides stop short.
A good BEMS does four things:
Tracks demand per panel and per circuit
Triggers load shedding automatically
Logs data for trending and reporting
Alerts you when a reading drifts out of range
Smart Lighting and IoT Diagnostics
Legacy troubleshooting assumes a fixture either works or it does not. Networked lighting changes that. A fixture can be physically fine and still draw power at the wrong time because of a control-layer fault.
Three protocols dominate commercial smart lighting:
DALI (Digital Addressable Lighting Interface), each driver has its own address, so a single misaddressed or duplicate address can leave a zone on after hours or off during business hours. When demand is higher than the schedule predicts, dump the DALI address list and look for duplicates and orphaned addresses before you touch a breaker.
0-10V and proprietary dimming, analog control lines are sensitive to reversed polarity and to shared neutrals. A reversed pair drives a fixture to full output when the system thinks it is dimmed.
PoE lighting, the fixture is powered by the same cable that carries data. A PoE fault shows up as a switch port drawing more watts than the fixture nameplate, or as a port that keeps renegotiating power. Check the switch's per-port power budget and the powered-device class before assuming the fixture failed.
Pro Tip When demand spikes for no clear reason, check device firmware and network status before you re-open a panel. In networked buildings, the control layer is the more likely culprit, and it is the cheaper thing to check first.
Matching the BEMS to the Building
The right platform depends on what you already own. A building with a legacy panelboard and no network is best served by a metering-and-shedding controller with a few digital outputs. A building with DALI lighting and a BAS already in place is best served by a BEMS that speaks the same protocols, so you are not running two overlapping control systems.
Step 5: Set Up Preventative Maintenance and Monitoring
Preventative maintenance and monitoring catch problems before they cause downtime. A schedule beats reactive repairs every time. But the schedule only works if it is built around the right tools and the right safety rules, the two things most load-management guides leave out.
The Tools That Make Each Task Worth Doing
A checklist without the right instrument is just paperwork. Match the tool to the task:
Clamp meter, reads current without breaking the circuit. Use it for phase-balance checks and for verifying that a shed command actually dropped the load.
True-RMS multimeter, reads voltage, continuity, and resistance. Use it to confirm voltage at the panel and at the load; a drop between the two points points to a loose connection or an undersized conductor.
Thermal imaging camera, finds loose connections, overloaded breakers, and failing terminations by heat signature. This is the single highest-value tool for a quarterly panel scan, because heat shows up before a connection arcs.
Insulation resistance tester (megohmmeter), finds failing motor windings and deteriorating feeder insulation before they short.
Light meter, confirms that a dimming or daylight-harvesting schedule is actually delivering the intended foot-candles, not just reporting a percentage.
Power quality analyzer, for recurring nuisance trips, captures harmonics, sags, and transients that a standard meter misses.
A Maintenance Schedule You Can Actually Run
Build a maintenance log and set recurring tasks:
Thermographic scan of panels and connections each quarter
Torque check on breaker and lug terminations annually
Insulation resistance test on motors and feeders annually
Ground fault and GFCI testing per code intervals
Review of demand trends against your baseline each month
Verify each load-shedding sequence under real load at least twice a year
Confirm control-system firmware and device addresses after any lighting retrofit
Component wear shows up as heat, vibration, or rising resistance. A thermal scan finds loose connections before they arc. An insulation resistance test finds failing motor windings before they short. A demand-trend review finds a slow creep in baseline draw before it trips the main.
Safety Rules That Govern the Work
Watch Out A thermographic scan of an energized panel is not a casual task. It requires appropriate arc-flash PPE and an approach boundary based on the available incident energy. If the label is missing or outdated, an arc-flash study comes first.
The DOE Federal Energy Management Program publishes operations and maintenance guidance that applies to commercial facilities of all sizes, and it is a useful reference when you build out the schedule above.
Common Mistakes to Avoid When Managing Electrical Loads
The biggest mistake is treating load management as a one-time task. Loads change as equipment ages and new devices get added. A calculation from five years ago may not fit today's building.
Other common errors:
Ignoring voltage drop on long feeder runs
Skipping the load calculation and guessing at capacity
Using the wrong demand factor for a load type
Forgetting to check dimmer and sensor compatibility with new LED fixtures
Never testing the shedding sequence under real load
Key Takeaway Load management is a cycle, not a checkbox. Assess, calculate, control, maintain, then reassess whenever the building changes.
Conclusion: Next Steps for Reliable Commercial Electrical Load Management
Load problems rarely announce themselves. They build quietly until a peak day tips the system over. The fix starts with real measurements, a correct NEC calculation, and a maintenance plan you actually follow.
Frequently Asked Questions
What is electrical load management in commercial buildings?
Electrical load management is the process of monitoring, controlling, and distributing power demand across a commercial facility to avoid overloads, reduce energy costs, and maintain reliable operations. It involves assessing connected loads, applying NEC commercial load calculation requirements, and using strategies like load shedding and energy management systems. For building managers in the Carolinas, effective load management prevents breaker trips and extends equipment life.
How do you calculate electrical load for a commercial building?
Start by listing all connected loads, including lighting, HVAC, motors, and receptacles. Apply demand factors from NEC Article 220 to account for diversity, since not all equipment runs simultaneously. Sum the adjusted loads to get the total demand in volt-amperes, then convert to amperes using the system voltage. A qualified electrician can verify the calculation and ensure it meets local code requirements.
What are the benefits of peak load management?
Peak load management lowers demand charges on utility bills, reduces strain on transformers and wiring, and prevents unexpected outages. By shifting or shedding non-critical loads during peak periods, you can avoid costly demand spikes. Many commercial building energy management systems automate this process, adjusting HVAC, lighting, and other systems in real time to keep demand within safe limits.
How can smart technology improve electrical load distribution?
Smart technology, including IoT sensors and networked controllers, provides real-time data on power consumption across circuits. This lets you identify inefficiencies, automate load shedding, and balance loads dynamically. For example, occupancy sensors can turn off unused lighting, while smart panels can prioritize critical circuits during high demand. These systems integrate with existing commercial building energy management systems to optimize performance without manual intervention.
